      PA hotmelt low pressure molding
      Customized

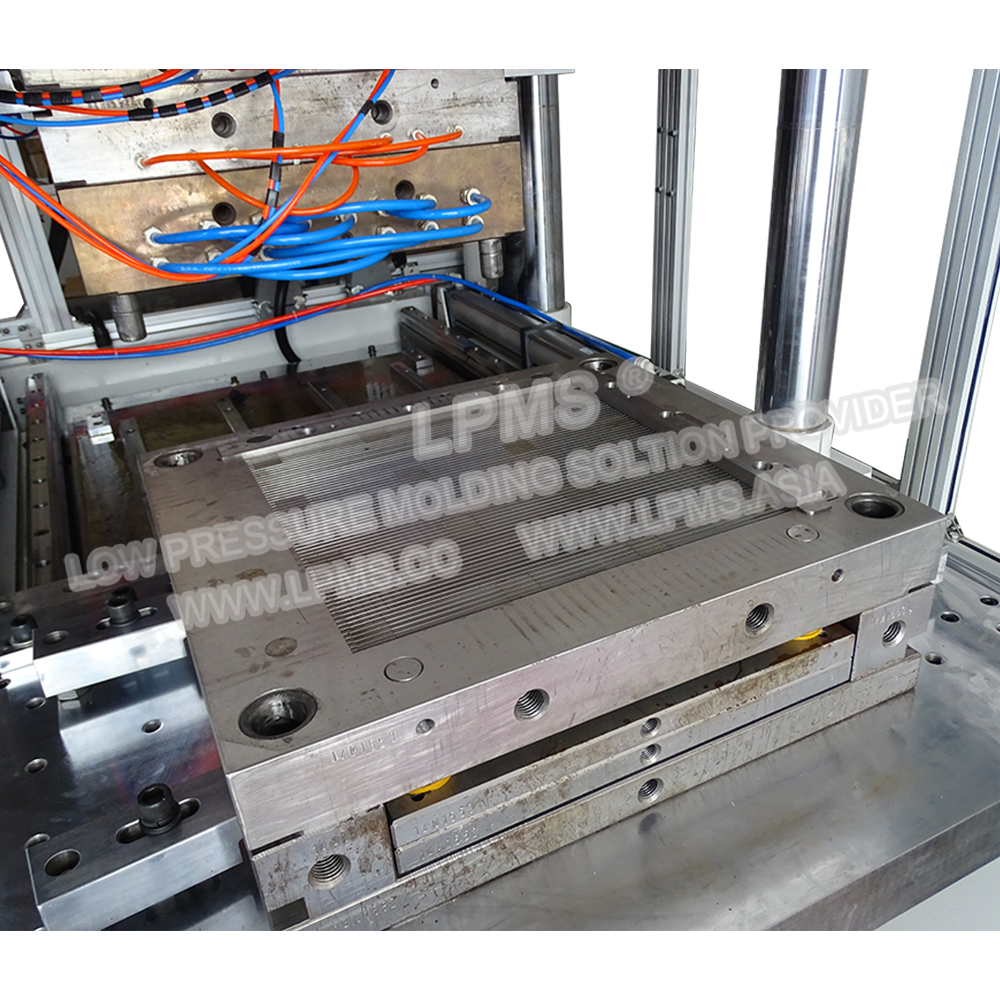

      Vertical Injection Hot Runner with Separate Tank

      LPMS 1000DF

      Vertical Injection Hot Runner with Separate Tank

      Hot runner system eliminates runner resin and improve productivity.

      Air over oil cylinder gives larger clamp force for bigger part.

      Separate high volume melting tank.

      7 "in touch screen operator interface with multi-language PLC.

      Four post die set for larger parts.

      Equipped with light curtain and dual palm buttons for operator safety.

      Ejection system is equipped.


      Application

             Our machines are engineered for low pressure molding applications. Using specialty resins to encapsulate delicate parts.

        Applications including : automotive electronics, PCBA,coil, fiber-optic, LED lighting, wire, cable, etc.



      Specification

      Machine Size / Weight

      2205 mm x 2240 mm x 3050 mm

      Footprint

      2205 mm x 2240 mm

      Working Station Height

      1070 mm

      Melting Tank Model & Q'ty 1

      LPMS 500B-30x 3

      Auto Feeding System

       Optional

      Gun Model & Tip

      LPMS-HR1

      Each Station Gun Tip Qty

      8,depends on part design

      Heated Hose Model & Q'ty 2

      LPMS-H16J x 1

      Electricity 3

      200-240VAC/1 Phase/ 50Hz

      Temperature Control Zones

      18 according to the part

      Temperature Range 4

      Ambient up to 446°F

      Max .Power

      25 Kw

      Min. Air Pressure

      0.5MPa  |  73 Psi

      Air Consumption

      0.1 m3/min  |  3.5 ft3/min

      Clamping Force

      Max.150 Tons

      Clamping Stroke

      150 mm  |  5.9 in

      Control System

      PLC+7 in HMI

      Safety Protection

      Light Curtain

      Max . Part Size

      600 mm x 600 mm x 30 mm

      23.62 in x 23.62 in x 1.18 in



      Dimension




      Machine dimension


      Mold set dimension
